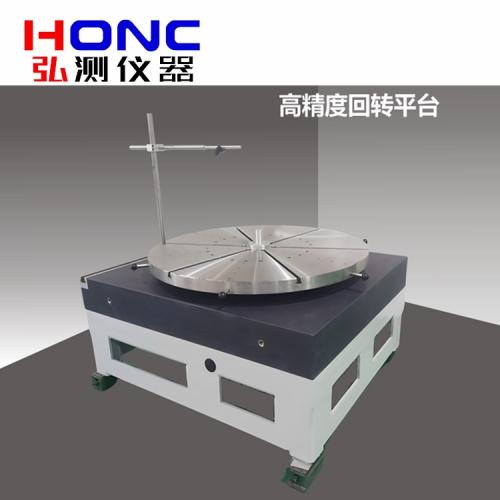

ST-1000D型 高精度回轉平臺【慣性導航測試轉臺】
產品簡介 Product introduction
慣性導航測試轉臺系統/Inertial Navigation Test Turntable System
慣導測試轉臺根據需要,有電動和手動兩種驅動方式,按結構可分為單軸、雙軸和三軸轉臺等,具有位置、速率、搖擺、跟蹤等多種功能,用于各種慣性器件、慣性組合、隨動跟蹤裝置等的地面測試。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.
高精度回轉平臺設備主要應用于航空航天及數控加工行業內的輔助檢測機構,用于盤軸、環類零組件相關形位偏差及形狀偏差的測量。
High-precision rotary platform equipment is mainly used as an auxiliary inspection machine in the aerospace and CNC machining industries, and is used to measure the shape and position deviations of disc shafts and ring components.
技術指標 Technical indicators
1.負載重量/Load Weight:100Kg;
2.臺面直徑/:Ф1000mm(帶6輻式T型槽/With 6-spoke T-slot);
3.臺面平面度/Table Flatness:0.025mm;
4.臺面跳動/Table Runout:0.025mm;
5.回轉徑向跳動/Rotary radial runout:10μm;
6.轉臺轉動控制方式/Rotation Mode:手動/Manual;
7.制動方式/Braking Mode:手剎/Handbrake;
8.角位置定位重復性/Positioning Repeatability Of Angular Position:±0.1°;
9.測量范圍/Measuring Range:0~360°;
10.需滿足360°旋轉,任何角度剎車,方便測量/It needs to be able to rotate 360° and brake at any angle for easy measurement;
11.配備三聯桿千分表支架/Equipped With A Triple Rod Dial Indicator Bracket:可加持百、千分表用于檢測/Support Dial Indicators For Testing。
