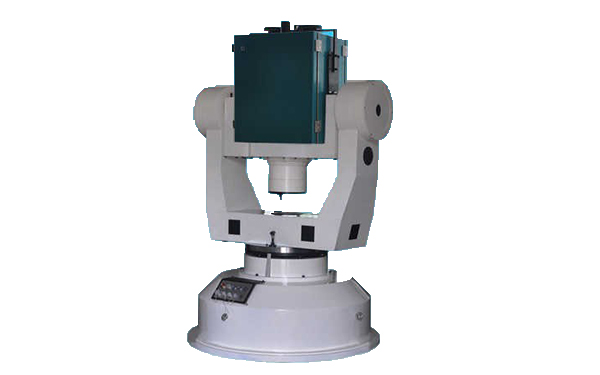

電動三軸溫控高精度轉臺【慣性導航測試轉臺】
產品簡介 Product introduction
本系列轉臺具有兩種操作方式:本地控制和遠地控制,本地控制在測控柜液晶觸摸屏上進行操作,遠地控制由用戶的計算機通過網絡接口或串口進行操作。
本系列轉臺具有超速保護功能、過流保護及緊急斷電保護功能。當轉臺測控柜或控制計算機非正常斷電時,臺體能停止在當前位置,不產生劇烈的抖動。
慣性導航測試轉臺系統/Inertial Navigation Test Turntable System
慣導測試轉臺根據需要,有電動和手動兩種驅動方式,按結構可分為單軸、雙軸和三軸轉臺等,具有位置、速率、搖擺、跟蹤等多種功能,用于各種慣性器件、慣性組合、隨動跟蹤裝置等的地面測試。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.
技術指標 Technical indicators
1、負載重量:40kg
2、臺面尺寸:Ф500mm;
3、臺面端面跳動:0.02mm;
4、臺面平面度:0.02mm;
5、轉角范圍:連續無限;
6、軸線回轉精度:±4″;
7、軸線垂直度:±5″;
8、兩軸相交度:≤Φ0.5mm的小球內
9、角位置測量分辨率:0.36″;
10、角位置測量精度:±3.6″;
11、角位置控制精度:±3″;
12、速率范圍:
主軸0.001o/s~500 o/s,
俯仰軸、方位軸0.001o/s~200o/s;
13、速率精度與速率平穩度:
1×10-3(1 o平均,ω≤1o/s);
3×10-4(10 o平均,1o/s<ω≤10o/s);
5×10-5(360 o平均,ω>10o/s);
14、角度數據實時采集時間間隔:≥1ms;
15、使用環境:溫度:20℃±8℃;
16、相對濕度:≤70﹪;
17、臺體接地電阻:≤2Ω;
18、工作電源:220VAC±10% / 50Hz;
